CHRocodile Mini confocal sensor and measuring probe

3D Metrology - Point Sensors

CHRocodile Mini confocal sensor

Request quote

Non-contact thickness & distance measurement with CHRocodile Mini

The CHRocodile Mini offers great flexibility in a small space and is ideal for precise and stable thickness and distance measurements on any kind of material.

CHRocodile Mini confocal sensor picture

Advantages

  • Low-price, state-of-the-art  chromatic confocal technology solutions
    As a powerful low-price alternative to laser triangulation sensors, the state-of-the-art chromatic confocal sensor CHRocodile Mini uses high-performance optical lenses to focus white light at different distances along the optical axis. Another advantage of coaxial measurement technology is that it avoids shadowing effects.
  • Lightweight confocal sensor with small footprint
    Weighing just 500-550 g and with dimensions of 95 x 106 x 95 mm, the CHRocodile Mini is the ideal lightweight and ultra-compact confocal 3D sensor for inline inspection applications. The optical probe and controller are separate and can be integrated into almost any small, tight space. What's more, the probe contains no moving parts, no electronic parts and no indicators that would generate heat and could impact the accuracy of the measurements.
  • High-precision measurement, regardless of the material
    Precise and stable measurements are possible on any kind of material – opaque or transparent, diffusive or reflective, shiny or light-absorbent, flat or curved, rough or polished – and any surface, e.g. mirrored, unfinished metal, ceramic and adhesive surfaces. Various optical probes enable a wide range of distance and thickness measurements.
  • NEW easy-to-use, plug-and-measure application software
    The new intuitive software myCHRocodile comes with several preinstalled settings, while application-specific settings can be easily selected using the drawings and short explanations supplied with the device.
  • Product variant CHRocodile Mini+
    A product variant with the same dimensions, the CHRocodile Mini+, comes with more interfaces (three encoder ports, analog output, digital in/out ports), which makes it even easier to integrate the CHRocodile Mini+ into any kind of inspection machine.
    Whichever model of confocal sensor you choose, it's a win-win situation for both integrator and end user.
  • Also available as OEM version

Technical data

  • Measurements per second: up to 4,000 Hz (optional upgrade 10,000 Hz)
  • Measuring range: 0.6 – 10 mm (depending on optical probe deployed)
  • CHRocodile Mini interfaces: Ethernet, RS422
  • CHRocodile Mini+ interfaces: Ethernet, RS422 + 3 encoder ports + analog output + digital in/out ports
Download Datasheet CHRocodile Mini now

Our service for your productivity

[Translate to Englisch:] Inbetriebnahme
Commissioning 3D Metrology

Learn more

[Translate to Englisch:] Reparatur
Repair 3D Metrology

Learn more

[Translate to Englisch:] Kontakt Service
Contact Service 3D Metrology

Learn more

More Point Sensors

CHRocodile C

  • Optoelectronics and optical probe in a single housing
  • Value for money
  • CHRocodile C HS, high sensitivity version…

CHRocodile 2 K

  • Plastic wall thickness measured
  • Precision results
  • Compact design
  • Exactly the right probe for your needs

CHRocodile 2S | 2SE | 2S HS

  • Works on all kinds of surfaces and materials
  • No shadowing effects
  • Ideal for inline measurements
  • Measurement at high…

CHRocodile 2 IT

  • Ultra-fast
  • Wide measuring range
  • Excellent on differing surfaces
  • Exactly the right probe for your needs

These sectors may also be interesting for you

CHRocodile CLS | CLS HS

  • No shadowing effects
  • Outstanding lateral resolution
  • High numerical aperture optical probes in outstanding quality
  • Hig…

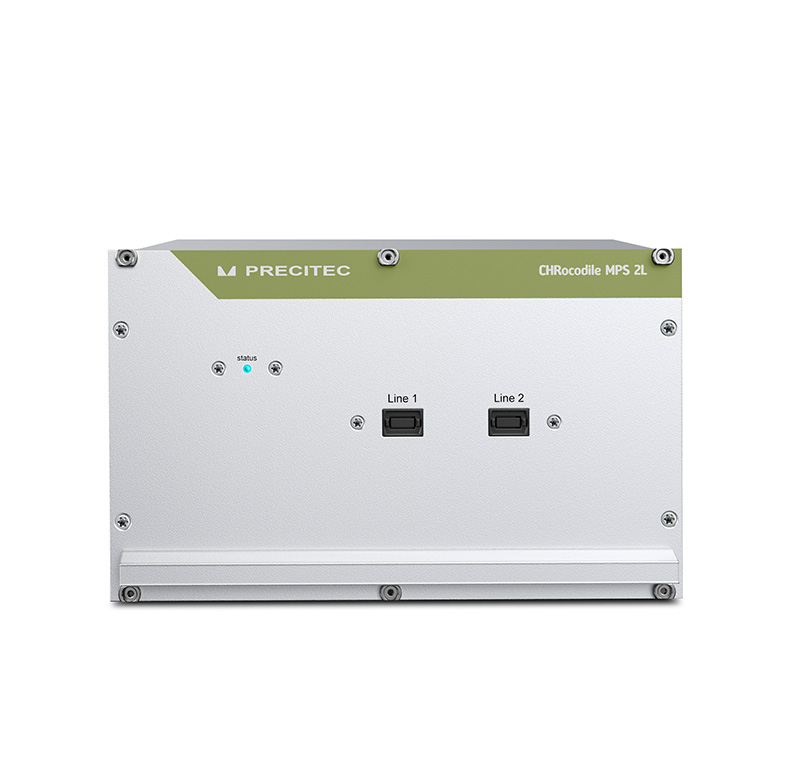

CHRocodile MPS 2L
