Laser cutting of tubes and profiles

Customized laser cuts

Laser cutting of tubes and profiles are performed by combined rotation and longitudinal movement of the workpiece - relative to the laser cutting head. Burr-free and smooth cutting edges are only achieved in laser cutting if the desired distance between nozzle and workpiece is maintained with high precision at each tube position. If the laser cutting head is additionally pivoted by means of tilting axes, not only straight cutting edges but also so-called phase cuts can be produced. This enables particularly complex contours and smart plug connections of several workpieces made of steel, stainless steel, or light and non-ferrous metals. Wall thicknesses can be up to 15 mm, while the tube or profile length is only limited by the size of the laser system.



Precitec offers the right laser head for all applications in tube and profile laser cutting. Depending on the complexity of the contours, both 2D and 2.5D laser cutting heads can be utilized. Highly automated laser cutting systems benefit from cutting heads with motorized focus position adjustment and sensor-supported monitoring and control functions. The laser cutting head influences the capability, productivity, and reliability of your tube and profile cutting system and therefore provides the desired quality and results expected.



ProCutter – High degree of automation and good performance

Faster, simpler, more efficient, more robust - this is how laser cutting on your tube cutting machine performs when you use the ProCutter. The cutting head ensures high accuracy and reproducible results for thin and thicker materials alike.

ProCutter 2.0

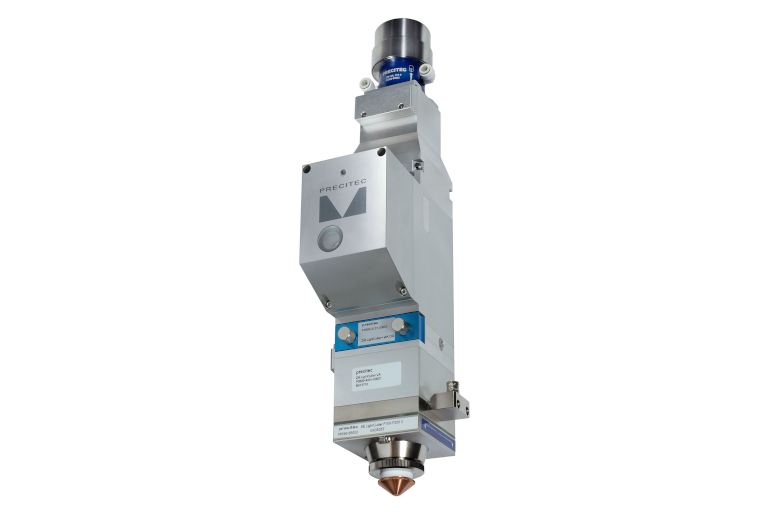

LightCutter – Complex cutting of contours with excellent price/performance ratio

The LightCutter cutting head is the ideal solution for tubes, profiles, and free-form parts for efficient and economical laser cutting in the medium power range. Very complex or angled cutting contours can be realized as well. High cutting speeds and accelerations with the best edge quality for all metals - especially mild steel, stainless steel, and aluminum.

LightCutter 2.0

All-In-Light – Disk laser as a complete solution

With "All-In-Light" we offer you the best complete optical solution for your tube cutting machine based on disk laser technology. You receive the total package, from the laser source - to the fiber optic cable - to the cutting head. This means that you have only one supplier for the entire optical chain and a fast response time worldwide with regard to commissioning and service support.

All-In-Light Disk Laser

Pipe Cutting — Suitable Products

MiniCutter - Small all-rounder for thin sheet thicknesses

The MiniCutter is a real all-round talent for thin sheets. As a simple and compact plug and play solution, it provides you with very…

FormCutter Plus - Flexible & highly productive robot cutting

The FormCutter Plus enables cut-outs of complex workpiece geometries with the highest precision. Especially for agile robot…

All-In-Light Fiber Laser

The latest fiber laser series "All-In-Light Fiber" is a cost-efficient and reliable complete optical solution for your laser cutting…

Laser Cutting – Applications at a Glance

Pipe Cutting – Industries at a Glance
