Battery cells are made up of alternating layers of anode and cathode foils and are separated by the so-called separator. The stack of foils is then rolled up, packed into a metal housing and the batteries are finally welded securely.
Along the process chain of cell production, our 3D measurement technology and laser technology are used in numerous process steps: in the measurement of the thickness of the electrode foils or the measurement of the cutting burr, as well as in the laser welding of the individual foil layers (foil-to-tab) or in the laser welding of the housing and lid (cap-to-can).
The customer's requirement for our 3D measurement technology is: accuracies < 1 micrometer. Our sensors meet this requirement and are optimized for the production environments of battery cells, the so-called roll-to-roll applications: high web speeds, vibrating electrode foils, and alternating glossy and black surfaces. In laser technology, cap-to-can laser welding is a crucial application. Here, pinholes must be detected or, at best, avoided altogether. Here, too, we have optimized our products and optics specifically for these applications and developed innovative solutions.

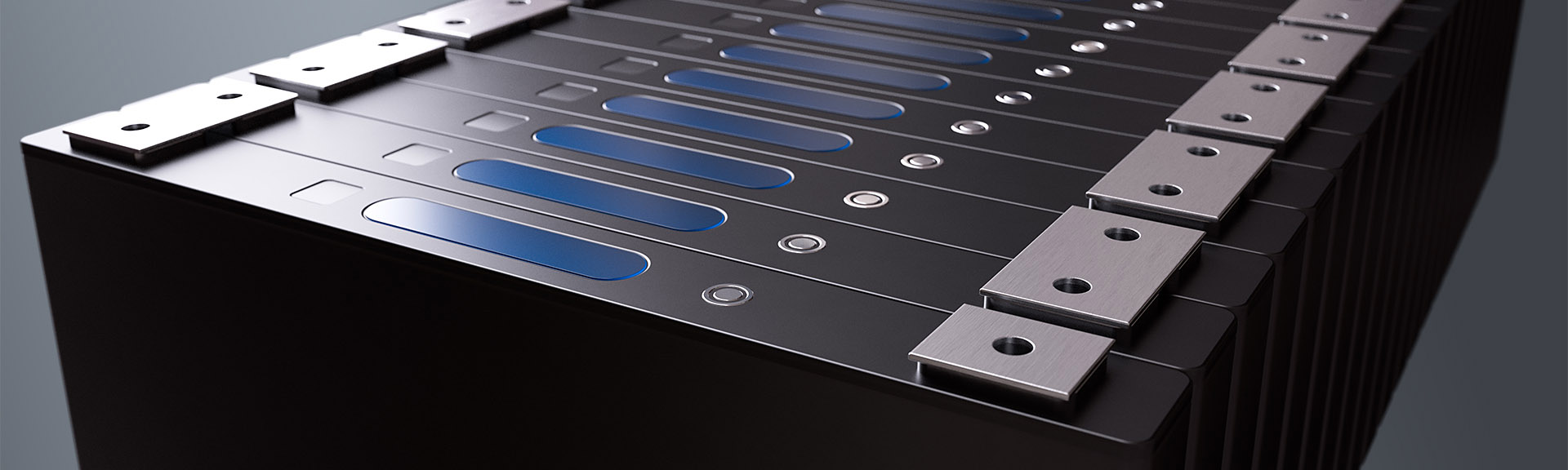

Three types of lithium-ion batteries are generally used in e-mobility. The batteries work according to the same functional principle and have a high energy density to ensure a long range. Pouch cells, cylindrical cells and prismatic cells are used, which are then connected to form battery modules to be able to provide the necessary power. But how do these cell types differ?
The exact coating thickness of electrode foils plays an essential role, as it has a significant influence on the performance and lifetime of the batteries. In the production process, the carrier film is first coated with the slurry continuously or intermittently and then the solvent is removed from the layer in the drying channel.
Thickness measurements are taken before and after the drying process. The coating can be in a dry or wet state - i.e., our measurement is always exact regardless of whether the surface is reflective, black, or porous. The effects of vibration and belt speed are compensated for. The waviness and thickness of the film are precisely analyzed, and the results are displayed. Current market requirements are an absolute accuracy of < 1 µm in combination with with a repeatability of ± 0.5 µm.

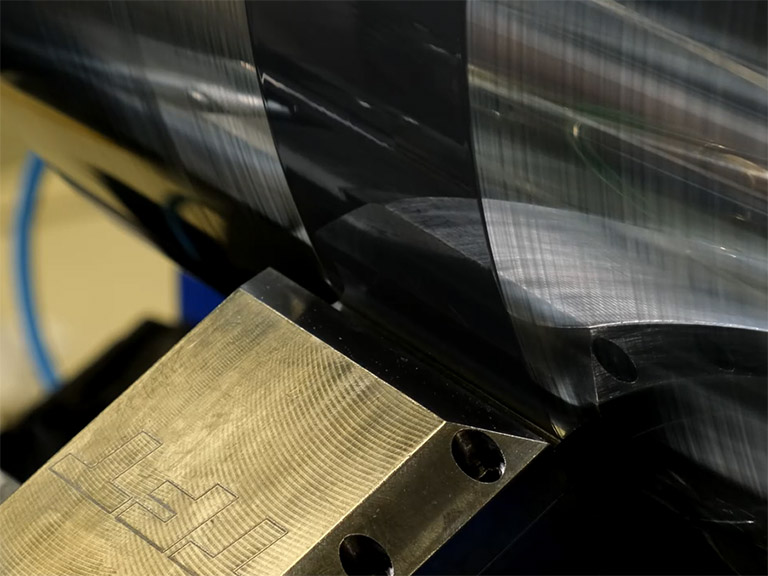

The exact distance between the slot die and the carrier foil is essential for the quality of the coating and thus the performance of the battery cell. The distances are usually between 100 - 300 µm. A not exactly adjusted distance has influence on the thickness of the coating, the coating width, as well as the formation of the unwanted edge superelevation.
The real gap can be precisely measured and adjusted during machine set-up and continuously monitored during coating. In combination with the measurement of the coating thickness or the edge superelevation, an automated control loop can be set up that significantly increases the efficiency of the system and boosts output.
Edge superelevation occurs at the boundary of the applied slurry and can have a negative effect on further processing of the electrode, especially during coiling. It can lead to asymmetrical winding and thus also to massive handling problems.
To increase the performance of battery cells, attempts are currently being made to increase the thickness of the coating. However, thicker coatings also tend to form edge superelevation.
Our line sensor enables precise measurement of the edge over a length of up to 20 mm during the manufacturing process. Both wet and dry edges can be detected. The vibration of the foil is calculated in the process. Transitions from reflective, metallic carrier foils to black slurry can be precisely displayed.
The start/stop edge occurs during intermittent coating. In this process, slurry is alternately applied to the carrier foil or deliberately left out. The start/stop edges are challenging with this type of coating and must be monitored to ensure long life and safety of the battery cell.
With our point sensors, the topography profile can be precisely measured, and thus possible coating defects can be detected early and accurately.
The exact coating thickness of electrode foils plays an essential role, as it has a significant influence on the performance and lifetime of the batteries. In the production process, the carrier foil is first continuously coated with the slurry and then the solvent is removed from the layer by applying heat in the drying channel. To guarantee a high bonding strength of the slurry on the carrier film, the identification of the 5 stages of drying is essential. For example, the migration of the binder must be prevented. For optimized drying, the time of complete pore emptying is also crucial.
Our sensors allow these points in time to be identified during the drying process. This allows the drying length to be shortened, the quality of the coating to be optimized and energy costs to be reduced.
Precise thickness measurements can also be taken during the entire drying process. Whether wet or dry layers, black or porous graphite or cathode active material - the measurement result remains accurate. The effects of vibration and belt speed are compensated for during the measurement. By using the sensors, the drying length can be shortened, the quality of the coating optimized, and energy costs saved.
Calendering is the last process step in the production of the electrode. This is where the final thickness and porosity of the coating are essentially determined. Besides the weight per unit area, these are decisive characteristics for the performance and safety of the battery cell.
Our sensors allow comprehensive measurement of the calendering process. The thickness of the electrode before and after calendering, the concentricity of the calender rollers and the so-called wrinkles are measured. These are wrinkles at the edge of the coating on the substrate. Vibrations of the foils are compensated by our sensors and waviness is calculated. This means that exact measurements can be carried out at any time, even at high belt speeds of between 100 - 150 m/min.
During calendering, the electrode foils are compressed, i.e., rolled. This process step determines the final thickness of the electrode foil and thus the safety, lifetime, and performance of the battery cell.
For optimal compression of the foils, the distance between the two calender rollers must be precisely adjusted and monitored during compression. The distance between the two rollers can change due to the smallest deviations in the concentricity of the rollers or due to the applied feed force of the rollers. Our sensors can precisely measure the smallest changes in the real gap and thus ensure that the electrodes are always of the highest quality.
Calender rolls are solid steel rolls with diameters larger than 1 m. The mirror-like surfaces are precisely ground to ensure the highest quality of the rolled electrodes. Defects on the rolling surfaces as well as small deviations of the concentricity have a direct influence on the thickness and condition of the electrode foil. Monitoring the wear of the calender roll surfaces as well as the concentricity is therefore of utmost importance.
Our sensors allow these quality characteristics to be recorded. The smallest deviations from concentricity are detected, the smallest scratches on the roll surfaces are detected.
Due to the roll force and the different expansions of the coating and foil material, wrinkles can form after rolling. These occur especially at the edge of the conducting foil to the coating. Wrinkles significantly complicate the subsequent production processes or even make them impossible.
With our sensor technology, wrinkles can be detected, and their size measured. If they are too large, the material is rejected. The formation of wrinkles can also be reduced by adjusting the rolling parameters.
The separator foil separates the two electrode foils, i.e., the anode and the cathode, and thus prevents short circuits. Separator foils must be electrically insulating and therefore usually consist of porous, sometimes multi-layered plastics such as polypropylene or polyethylene. These films have thicknesses between 15 and 25 µm and must not be damaged by foreign particles. If the separator foil is penetrated, there is a short circuit and the risk of fire ignition is high. (thermal runaway).
With our sensors, we can measure the thickness and integrity of separator films and resolve the thickness of the individual layers.
With the help of laser cutting, electrode foils are brought to their final geometry. This consists of cuts with arrester lugs, but in the case of cylindrical 4680 cells also of straight cuts only. During laser cutting, the heat-affected zone as well as the cutting burr should be as small as possible. Intelligent cutting optics allow the position and focus to be precisely adjusted, thus guaranteeing the highest cutting quality. Furthermore, cameras and photodiode sensors are used to evaluate and track the quality of the cuts.
In battery production, coated copper and aluminum foils are separated and later assembled into complete cells. For the processing of the thin layers between 100 and 250 µm, the laser can show its strengths to the full. Mechanical separation processes often lead to damage to the surface coating - with the laser, the workpiece is processed without contact in the coil-to-coil process. By using process gases, possible particles are discharged downwards, so that the material surface is not contaminated. A dynamic and precise distance control ensures a high quality of the cut edges and low burr heights.
If the separator is penetrated, a short circuit occurs and the risk of fire ignition is high (thermal runaway). Separators usually have a thickness of approx. 20 µm. Therefore, it is of utmost importance to detect cut burrs of approx. 10 µm.
The measurement of the burrs can show the geometry and shape of the metal foils as well as the topography of the coating including the underlying metal foil. Different techniques are used to measure the burrs either from below or from the side, depending on the task and requirements. Integrated into a roll-to-roll system, we therefore reliably detect burrs and thus provide information on the quality of the slitter (predictive maintenance) or the laser cut.
Battery cells consist of several layers of thin copper foils and aluminum foils (5 - 10 µm) that must be welded together to create a stable and powerful battery. Usually 60 - 100 foils are welded together in the process. Depending on the desired capacity and performance of the battery, several of these layers are then stacked on top of each other.
When welding the foil stack, an intelligent welding strategy is important in addition to precise clamping of the foil stack. This makes it possible to realize a secure connection from the first to the last film with little distortion and without burn-through. By using process monitoring systems, welding anomalies and the smallest deviations can be detected to ensure the quality and reliability of the weld seam. Ultimately, this leads to higher production output and better product quality.
Cap-to-can laser welding involves welding a metal lid (cap) onto a metal container (can). This type of laser welding is often used in battery production to isolate the electrolytes from the outside world and to prevent leakage of liquids. Materials here are aluminium or nickel-plated steel.
Cap-to-can laser welding is used for cylindrical but also for prismatic battery cells. In both cases, the quality of the weld is crucial for the performance and reliability of the battery.
With large battery cells, such as the 4680, the roundness of the can is not always 100%. However, it is essential for the tightness of the weld that the laser beam is guided along the contour of the can. The real contour can be measured exactly and quickly with the ScanMaster and the laser beam can be adjusted accordingly. In this way, high-quality weld seams can be achieved without welding into the cell.
A typical defect in cap-to-can laser welding is the so-called pinhole, which can lead to leakage of the welded joint. Large pinholes can be detected as a welding anomaly with the Laser Welding Monitor. The smallest defects on the weld seam are detected in the post-process by measuring the topography of the weld seam. Reworking of the cell is then possible, reducing scrap.
During the assembly of the battery cell, the electrolyte is filled and distributed evenly and completely into the cell to ensure optimum performance. Residues of electrolyte on the outside of the battery cells compromise product safety. The more batteries are produced, the more urgent the need for automated detection and ejection of contaminated areas on the filling side of the battery cell in the production line. In the subsequent process, known as seal pin welding, the filling opening of cylindrical or prismatic cells is seal-welded by laser. Residues of the electrolyte influence the quality of the weld seam and can lead to leaks or considerable contamination by weld spatter. The cell would then be leaky and thus a reject.
After filling the battery cell with the electrolyte, the filling opening is closed with a cover and tightly welded with laser light. This seals the cell and prevents the electrolyte from escaping. The cell is thus sealed.
The welding of battery cells is a critical process step, as it is a tightness welding. If the cell is leaky, it is scrap. Impurities or spatters could lead to tiny leaks in the weld. Precise and spot welding of the seal pin is therefore of great importance to ensure that the cell remains sealed, and no electrolyte can leak out. The goal is distortion-free and tight seams with low and locally limited heat input. Each individual weld can be monitored, evaluated and documented online. Our systems detect irregularities and faulty welds. 100% traceability and transparency of your processes is ensured.
A fuel cell consists of numerous bipolar plates that have to be welded gas-tight. In most cases, the welding speeds are very high - as are the quality requirements for the weld seam. In addition, the geometric parameters of the bipolar plates must be precisely maintained to ensure high fuel cell performance. We measure these with our 3D measurement technology sensors.
