Laser deposition welding with metal powder - focusing optics YC52

Laser Welding - Processing Heads

Focusing optics for laser cladding with metal powder

Request quote

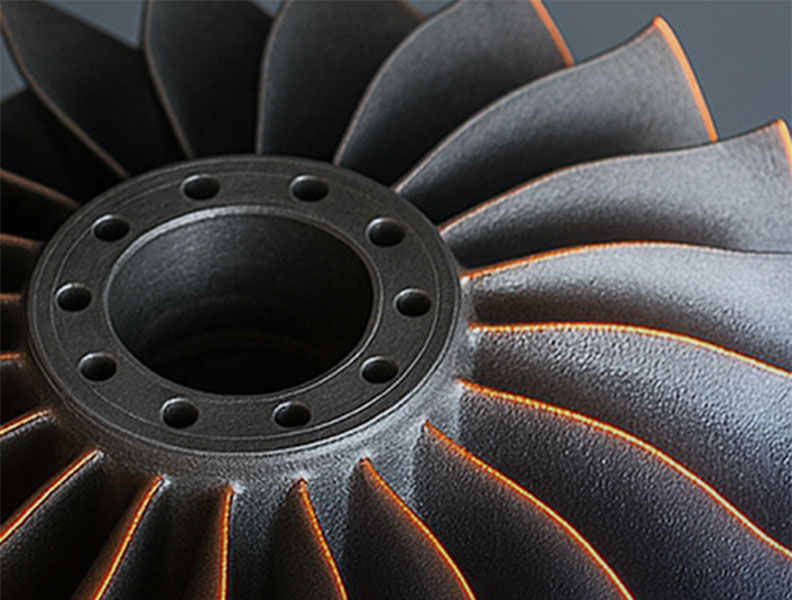

Additive manufacturing for repair, surface finishing, and 3D printing

In the field of laser cladding, our welding optics with powder nozzle allow you a wide range of applications. Almost pore-free layers with a long service life can be produced completely independent of direction. Typical areas of application are the generation of corrosion and wear protection layers, repairs, and the generation of 3D structures.

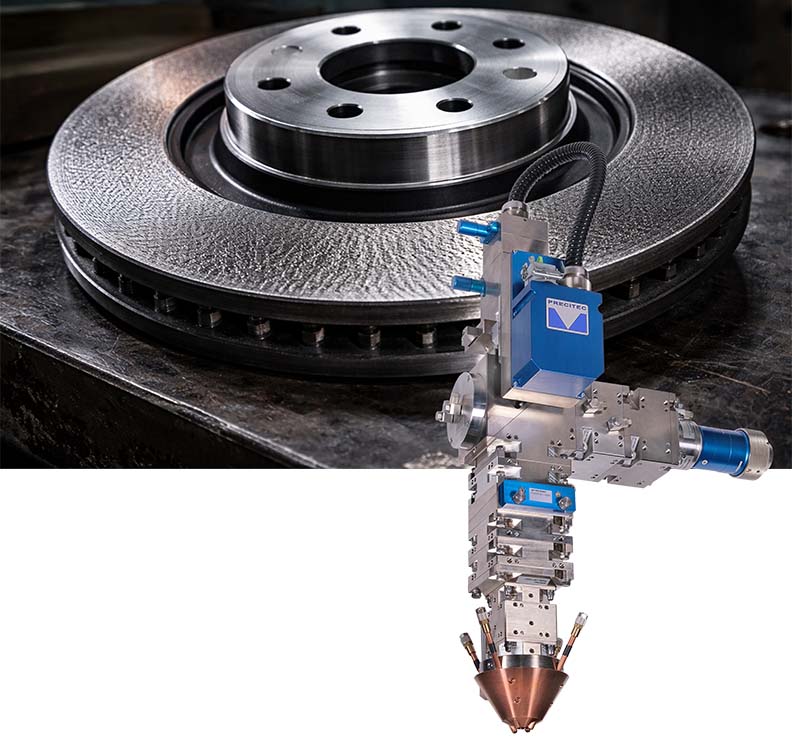

The YC52 processing head developed for additive manufacturing offers the same flexibility for your machine concept as the modular processing optics YW30/YW52.

Laser deposition welding with metal powder - focusing optics YC52
Laser deposition welding with metal powder - focusing optics YC52
Laser deposition welding with metal powder - focusing optics YC52
Laser deposition welding with metal powder - focusing optics YC52
Laser deposition welding with metal powder - focusing optics YC52
Laser deposition welding with metal powder - focusing optics YC52

Advantages

  • Flexible for many applications in additive manufacturing

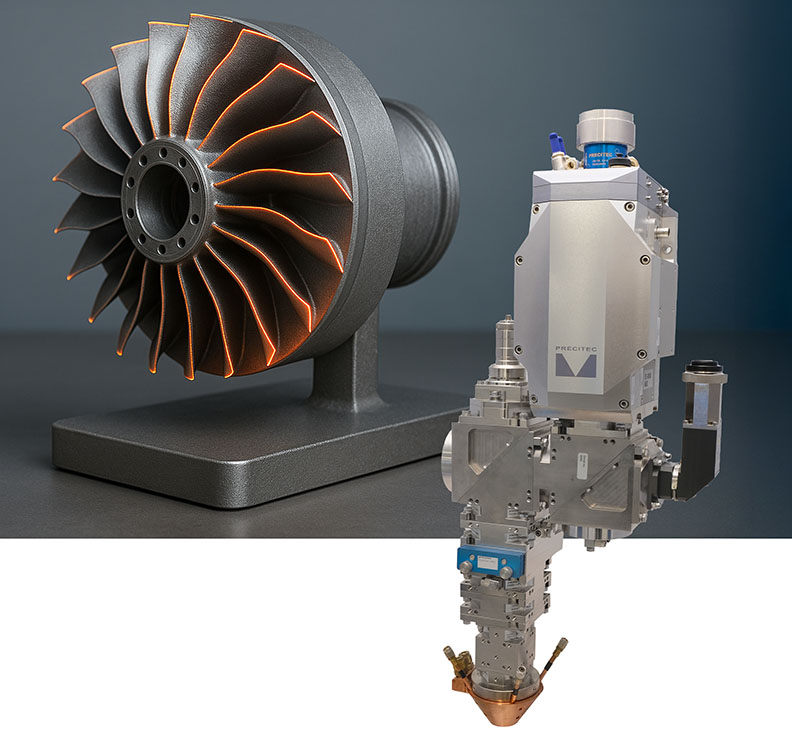

    Variable track widths and different concepts of powder feeding allow a flexible adaptation to your task.

    The following are available for selection:
    - Coaxial annular gap nozzle to generate a small powder focus and thus a high powder efficiency.
    - A multijet coaxial nozzle with four separate powder feeds ideal for 3D applications.
    - A lateral nozzle for lateral powder feed with perfect inert gas coverage to produce particularly smooth surfaces.

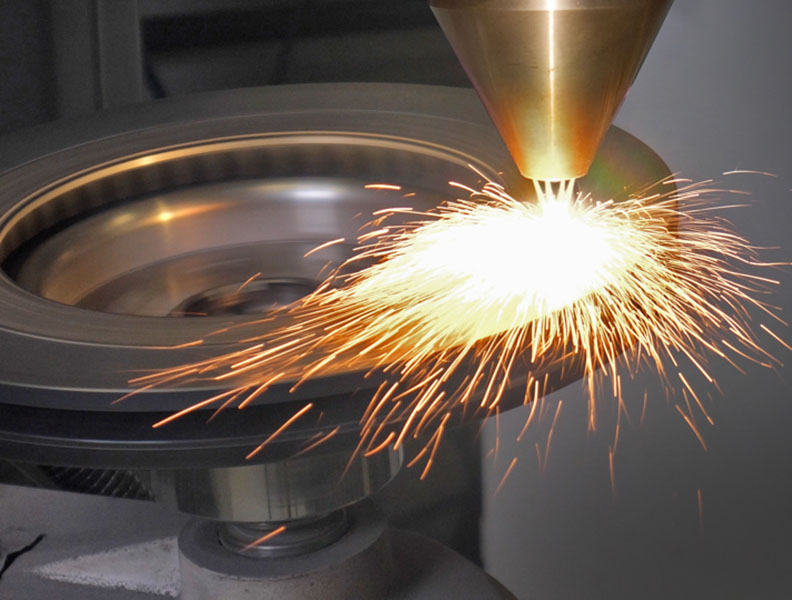

    The fields of application of powder cladding are found in the research sector but also in industrial use. You can process a wide range of materials such as basic alloys of nickel, cobalt, iron or stainless steels, and titanium alloys as well as powder containing tungsten carbide.
  • Online quality monitoring of the structure height during build-up welding

    Especially when generating high structures, it is essential to maintain a constant layer height. The Precitec IDM measures the structure height coaxially during the laser welding process with high accuracy. In cooperation with Siemens, this height measurement can be extended to a process control system and thus offers you a continuous measurement of the job structure and the possibility of comparison with the CAD data set. Expensive and time-consuming process interruptions for analysis and reworking are no longer necessary.
    The process automation can be supported by the use of a pyrometer.



Technical data

  • max. laser power: 6 kW (depending on application and nozzle used)
  • Working distance: 12 - 14 mm (24 mm at 250 mm focusing focal length)
  • min. Powder focus diameter: 0.7 mm (annular gap nozzle), 2.0 mm (4-jet nozzle)

We need your consent to load the form!

We use Marketing Cloud Account Engagement (Pardot) Forms to embed content that may collect data about your activity. Please review the details and click in the Pardot box to accept the service and see the content.

Our service for your productivity

[Translate to Englisch:] Inbetriebnahme
Commissioning Laser Technology

Learn more

Training
Training Laser Technology

Learn more

[Translate to Englisch:] Wartung
Maintenance Laser Technology

Learn more

[Translate to Englisch:] Ersatzteile
Spare Parts Laser Technology

Learn more

[Translate to Englisch:] Reparatur
Repair Laser Technology

Learn more

[Translate to Englisch:] Service Hotline
Hotline Laser Technology

Learn more

More Processing Heads

YW52 with Laser Beam Shaping Solution

Combined with the YW52, the new laser beam shaping solution distributes power more evenly, reducing thermal load and…

CoaxPrinter

The CoaxPrinter offers you a wide range of applications in additive manufacturing - from filigree structures to complex…

NexoWelder

The NexoWelder is the solution for efficient and economical laser welding in the medium power range up to 8 kW.

Focusing optics YW30 | YW52

Whether you need a simple or very complex welding optics design - we adapt to your machine design and your requirements.…

These sectors may also be interesting for you

Laser Welding Monitor LWM 4.0

The Laser Welding Monitor LWM 4.0 is used for the online process monitoring in many areas of industrial production in…

Precitec IDM

The Precitec IDM measures the welding depth coaxially during the laser welding process. Measurement data is always…

ScanWelder

With a 1D scanning movement of the laser beam, the seam is specifically influenced. During welding of a fillet seam, for…

WeldMaster 4.0 Inspect

The WeldMaster 4.0 Inspect can work independently of the actual welding station. It is a self-sufficient quality control…

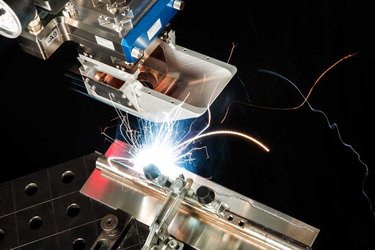

WeldMaster 4.0 Scan&Track
