Laser Cutting - Laser Cutting Heads

ProCutter 2.0 - Laser cutting with power up to 20 kW

Request quote

Efficient - automated - persistent

1000-times reliability in use: the ProCutter 2.0 impresses worldwide with its high performance and automation. Its reliability and load capacity in flatbed and tube cutting systems has been perfected - up to a maximum laser power of 20 kW.

laser cutting product detail procutter 20 03
laser cutting product detail procutter 20 01
laser cutting product detail procutter 20 02

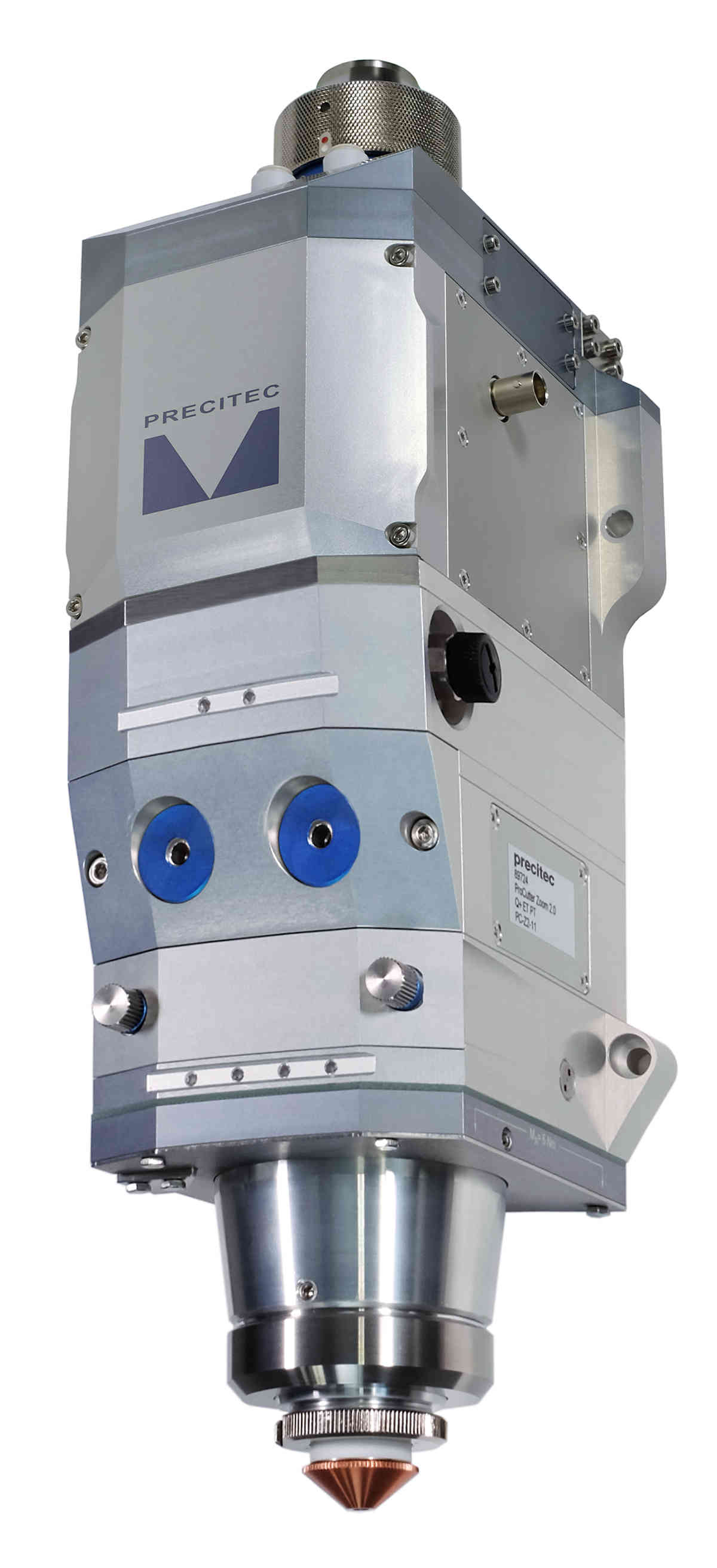

laser cutting product detail procutter 20 04
laser cutting product detail procutter 20 05
laser cutting product detail procutter 20 06
laser cutting product detail procutter 20 07
laser cutting product detail 20 08
laser cutting product detail pro cutter 20 09
explanation procutter app

Advantages

  • Maximum productivity thanks to superior technology

    With the ProCutter 2.0, cutting processes that were previously hidden away can now be used in an industrially stable manner. It is not necessary anymore to choose between high quality and high speed. Now both are possible - increased machine utilization and a shorter payback period. The amount of rework is reduced to a minimum.
    With the new ProCutter 2.0 generation, the highest cutting speeds can be achieved that were previously unthinkable. The cutting head works trouble-free up to 20 kW laser power thanks to its sophisticated cooling concept and the extended travel paths. If the full laser power is not required, the cutting speed can still be increased by up to 25% compared to the predecessor product due to the optimized design.
  • Intelligent sensors at its best

    Component quality and process stability remain permanently constant: fluctuations in the process or in the quality of the material to be cut are compensated without the need for intervention by the machine operator. With PierceTec - automated piercing of the material - you achieve consistent hole and surface quality and can reduce the amount of rework required. PierceTec saves cycle time and operating costs.
    Smart sensors integrated into the cutting head permanently monitor the condition of critical components or cutting process parameters. The sensors also provide the basis for planned maintenance and efficient utilization of spare parts. This ensures even safer operation and reduces follow-up costs.
    It is also possible to access the data via mobile devices and to visualize the current status in the ProCutter APP or to query error messages.

Technical data

  • max. laser power: 20 kW (with wave lengths of 1030 - 1090 nm)
  • Collimating focal length: 100 mm, Focus lengths: 150, 200 mm
  • NAmax: 0.13
  • Dimension (WxD): 96 x 134 mm
  • Weight: 4.9 kg (FF150)

Download ProCutter 2.0 data sheet now
